First, the customer name:
Jiangling Holdings Co., Ltd.
Second, the project profile:
1. Scope of supply: pre-treatment, electrophoresis pendulum and front and rear entrance and exit rolling beds, including design, production, installation and commissioning
2. Project introduction:

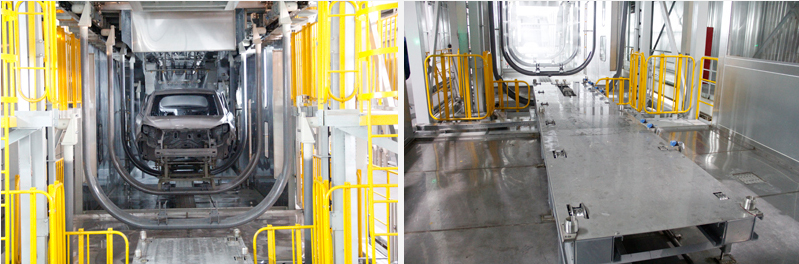

Jiangling Holding's painted pendulum conveyor line includes: pre-treatment, electrophoresis pendulum and front and rear entrance and exit roller beds. The conveyor line is equipped with CS control system, real-time monitoring system, fault alarm and other functions.
The main parameters:
Production capacity: 100,000 units
Product: The production line passes the maximum body-in-white size: L×W×H:
4500 (open door 4800) × 2000 (open door 2200) × 1500 mm
The workshop production line passes the maximum body-in-white weight: 500Kg/set.
Production program: 30JPH, 3 shifts; year-round work, 21.5h per day
Production mode: continuous through production line
Conveyor line form: swing chain, skid roll
